About the HT Panel
HT panels, or High Tension panels, act as the nerve centers for high voltage electricity within a plant, power station, or substation. They manage equipment and electrical circuits of greater than 11kV, distributing the voltage within the facility in a safe and effective manner. Essential components such as circuit breakers and protective relays are installed on these panels. Circuit Breakers are capable of shutting down the power supply in the event of an overload or short circuit, relays ascertain the existence of such faults and actuate the breakers. Relays, in turn, monitor diverse electrical parameters as supplied by the meters. Operators can position HT panels either inside or outside depending on the practical need. These panels have significant importance for the control of power in broad exercises. There is also a distinct advantage in the safe manipulation and routing of high voltage power throughout various sections of the system.
Types of HT panel
as we are
HT panel suppliers in Pune, Here are some of the major specifications which define the quality, safety and performance for our panels:

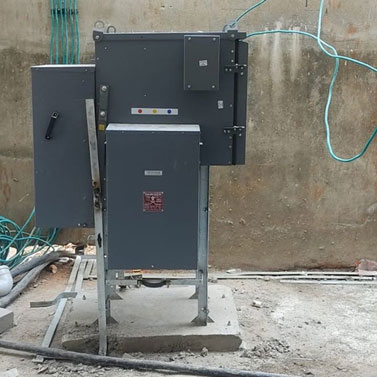

- VCB (Vacuum Circuit Breaker) Panels: High-voltage circuits can be created and broken using vacuum circuit breakers. For medium-voltage applications, they are renowned for their dependability and minimal maintenance needs.

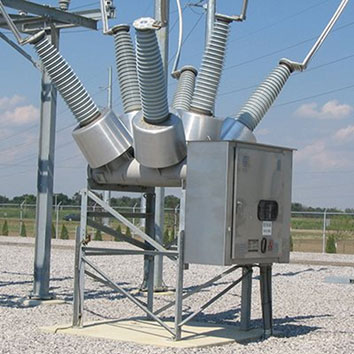

- SF6 (Gas Circuit Breaker) Panels: During circuit disruptions, use sulfur hexafluoride gas to put out arcs. These panels have outstanding insulating qualities and work well in high-voltage applications. Modern gas-insulated switchgear systems used in medium and high-voltage power distribution are called SF6 (sulfur hexafluoride) panels.

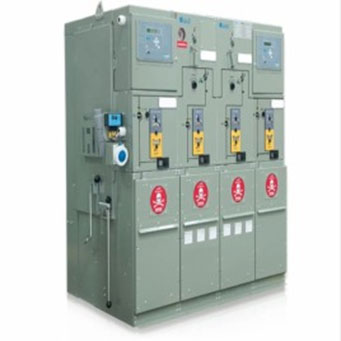

- Ring Main Units (RMUs): Compact, completely enclosed switchgear units called Ring Main Unit (RMU) Panels are used to distribute medium-voltage power. Medium-voltage distribution networks employ small, sealed switchgear units. RMUs are frequently utilized in urban and industrial environments because they provide flexible and dependable power distribution.
Key Specifications of HT panel
Here are some of the major specifications which define the quality, safety and performance for our panels:
| Specification |
Description |
| Voltage Rating |
HT panel: Up to 33kV; LT panel: 415V – suitable for various load requirements. |
| Current Capacity |
Ranges from 100A to 6300A, customizable based on application. |
| Type of Protection |
IP42 to IP65 – ensures dust, water, and corrosion resistance for indoor/outdoor use. |
| Construction |
Made with CRCA sheet steel, powder-coated for durability and rust resistance. |
| Standards Compliance |
panels are manufactured as per IEC, IS, and other relevant electrical standards. |
Applications or Utilities of HT panel
As one of the trusted HT panel suppliers in Pune, we serve a wide range of industries and sectors. The panels are designed to serve dissimilar electrical distribution and control applications across diverse applications.
- Efficient High-Voltage Power Distribution
HT panels serve as centralized hubs that distribute high-voltage power to different areas of a facility after receiving it from transformers. This guarantees effective electricity transmission between various sections or pieces of machinery, preserving a constant flow and lowering the possibility of interruption-related downtime.
- Protection Against Electrical Faults
With the help of safety features like relays and circuit breakers, HT & LT panels are able to identify problems like overcurrents, short circuits, and overvoltage. They keep personnel safe and prevent equipment damage by isolating impacted areas.
- Integration with Automation Systems
Automation systems can be integrated with modern HT panels to provide remote control and monitoring. This improves operational efficiency by giving operators the ability to monitor electrical system status, control power distribution, and react to problems instantly through centralized control systems.
- Customization for Diverse Industrial Needs
HT panels can be tailored to meet the unique power distribution needs of various sectors. These panels can be customized to satisfy specific operational and safety requirements, whether they are found in a manufacturing facility, data center, or commercial complex.
Why Choose Us
Dhanraj Powertech is known as HT panel suppliers in Pune, dealers, and traders in Pune. We come in picture for the best electrical devices which are commonly used around industrial and manufacturing industries to manage and distribute heavy loads of high electricity. They enable heavy machinery to work under optimal conditions and protect them against power fluctuation. Let us know, and turn your project ideas into vibrant ones with proven quality and unmatched service!
