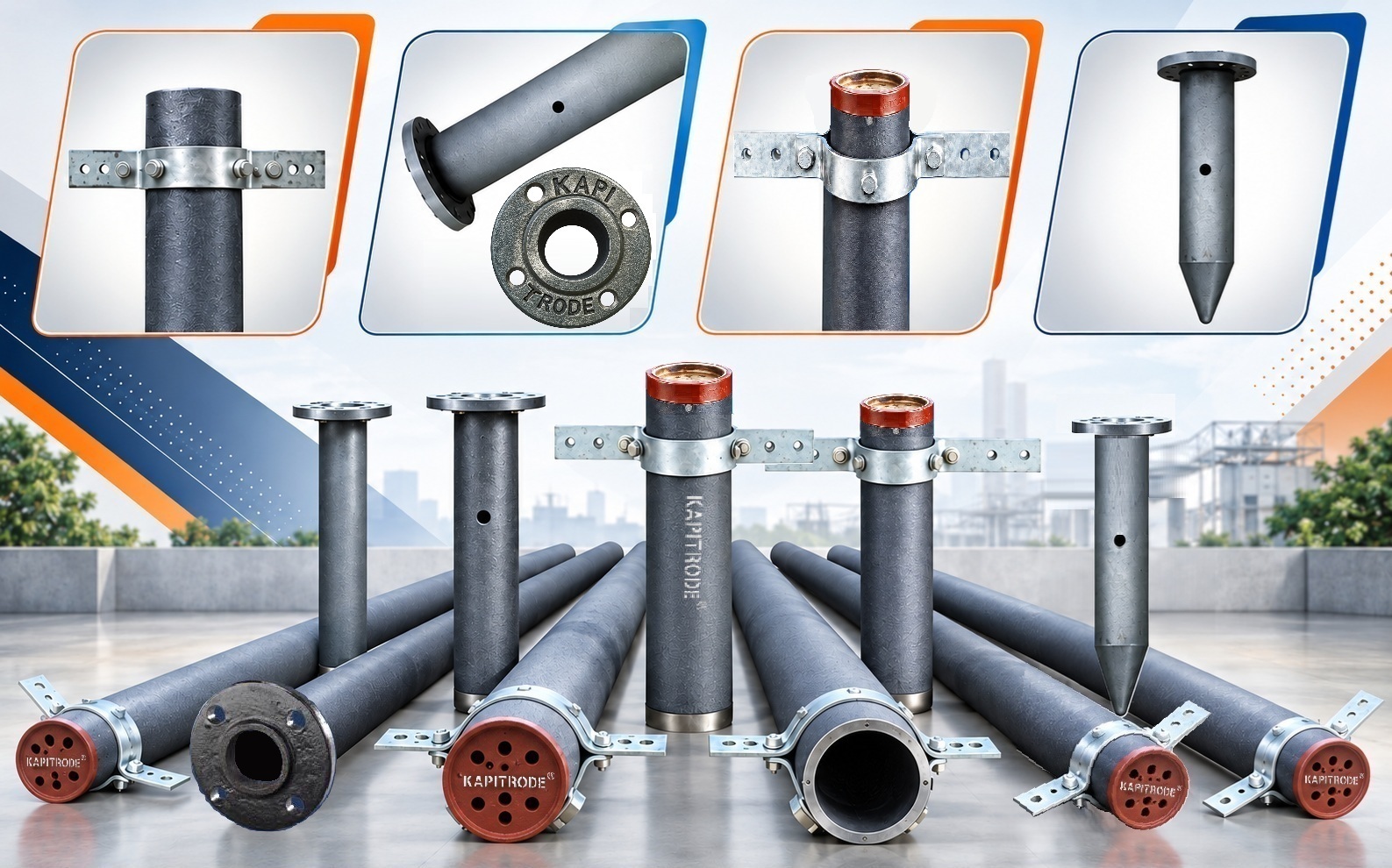

KAPITRODE Range - Earthing Electrodes

Cast Iron Earthing Pipe (KAPITRODE®)

KAPITRODE® offers a comprehensive range of high-quality earthing electrodes designed to deliver excellent electrical connectivity, conductivity, and uniform current dissipation. Available in multiple configurations for LT and HT earthing applications, KAPITRODE® products ensure reliable performance, long service life, and superior corrosion resistance.

ADVANTAGES / BENEFITS

  • Durable & reliable

  • Excellent connectivity & conductivity

  • Excellent & Uniform current dissipation

  • Less overall cost of ownership

  • Easy installation

  • Safety to human life & electrical system

  • Electrical Resistivity of C.I is 0.8 µΩ/Mtr

  • Higher surface area of contact

  • Best in-class corrosion resistance

Manufacturing Process

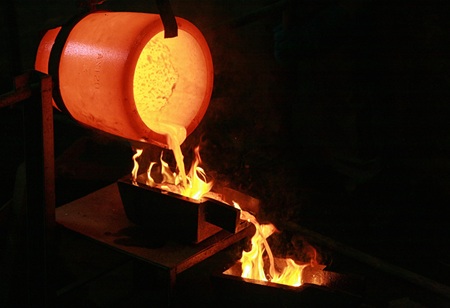

Melting

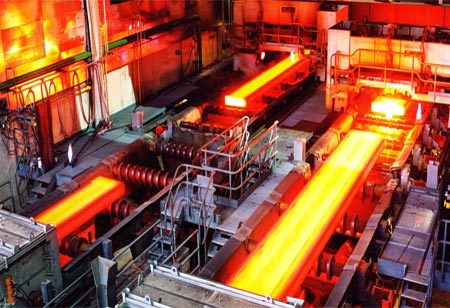

Spinning

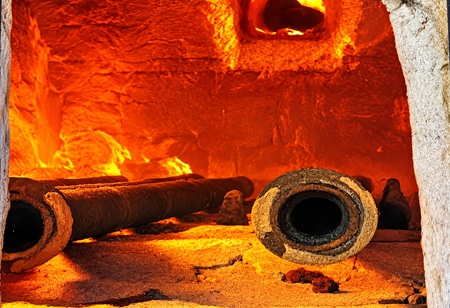

Annealing

Installation Process

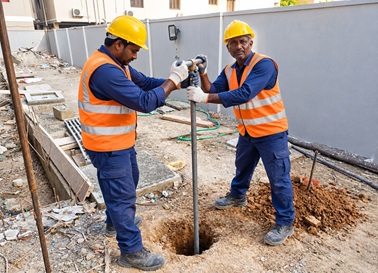

Piling

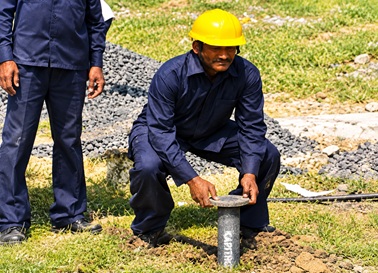

Inserting Electrode

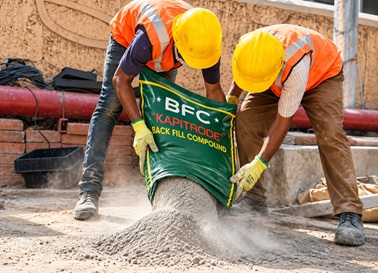

Backfilling

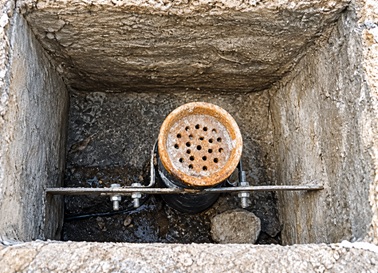

Earth Pit

LT Earthing

NB OD Thickness Lengths Available
50 57 3.5 1500 1800 - - 3000
75 82 3.5 1500 1800 2500 2750 3000
100 108 4.0 1500 1800 2500 2750 3000
150 160 5.0 - - 2500 2750 3000

HT Earthing

NB OD Thickness Lengths Available
100 114 7.0 2500 2750 3000
100 120 10.0 2500 2750 3000
100 126 13.0 2500 2750 3000
150 170 10.0 2500 2750 3000
150 176 13.0 2500 2750 3000

NB: Nominal Bore | OD: Outside Diameter

Note: All Dimensions are in millimeters. Tolerances applicable as per relevant standards.

Cast Iron Earthing Pipe (KAPITRODE®)

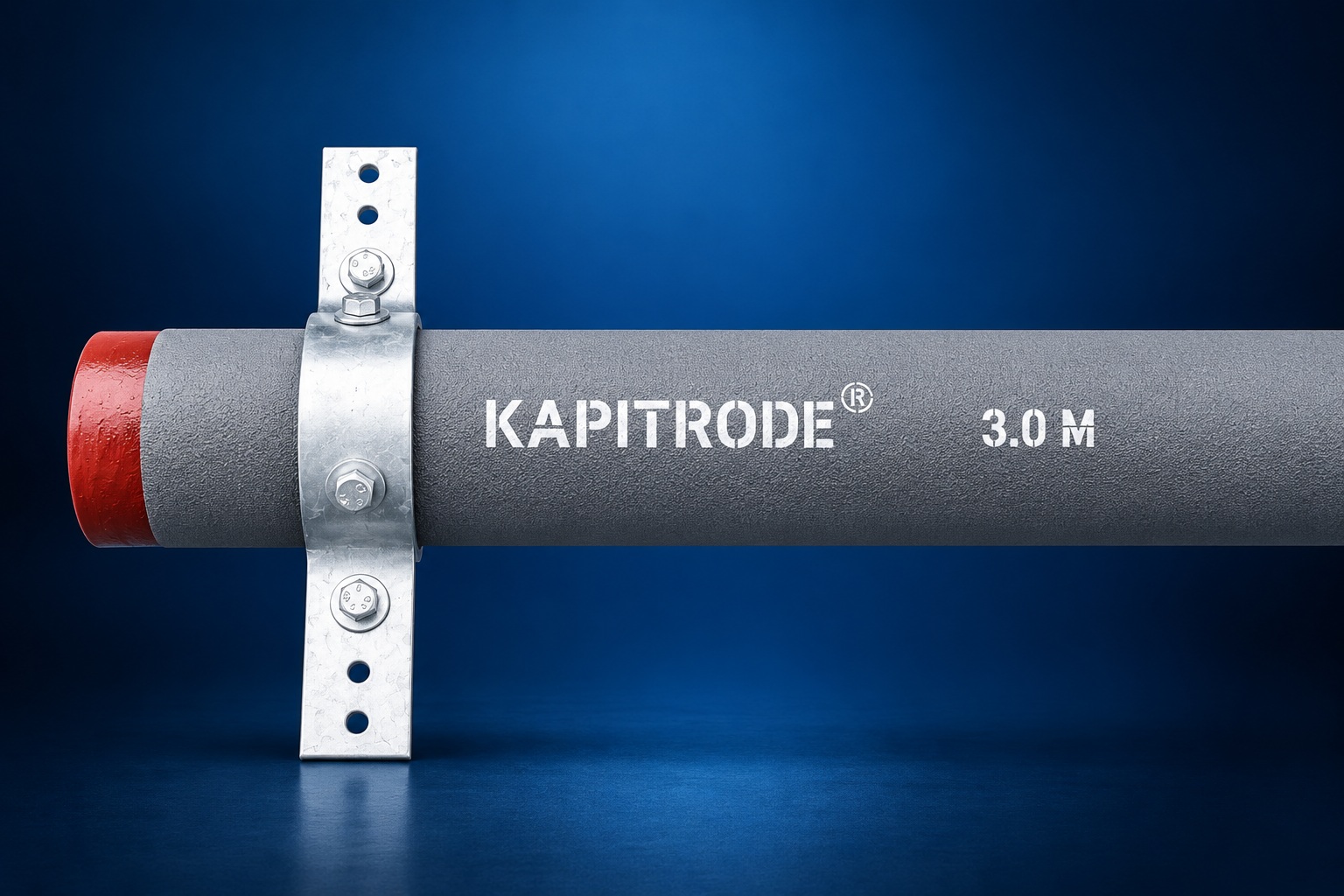

KAPITRODE with G.I. Clamp (HDG)
KAPITRODE®
with G.I. Clamp (HDG)

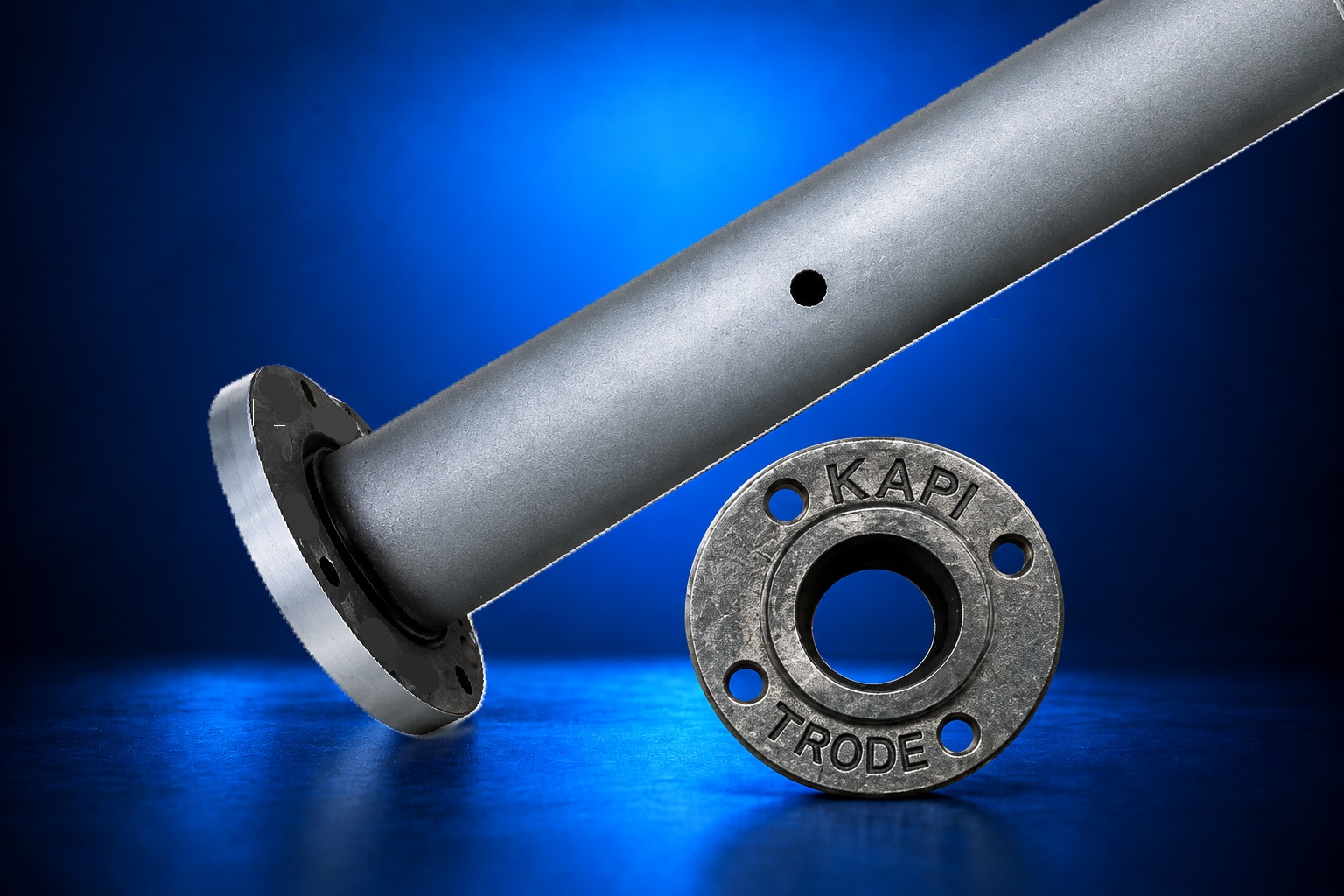

KAPITRODE with Flange
KAPITRODE®
with Flange

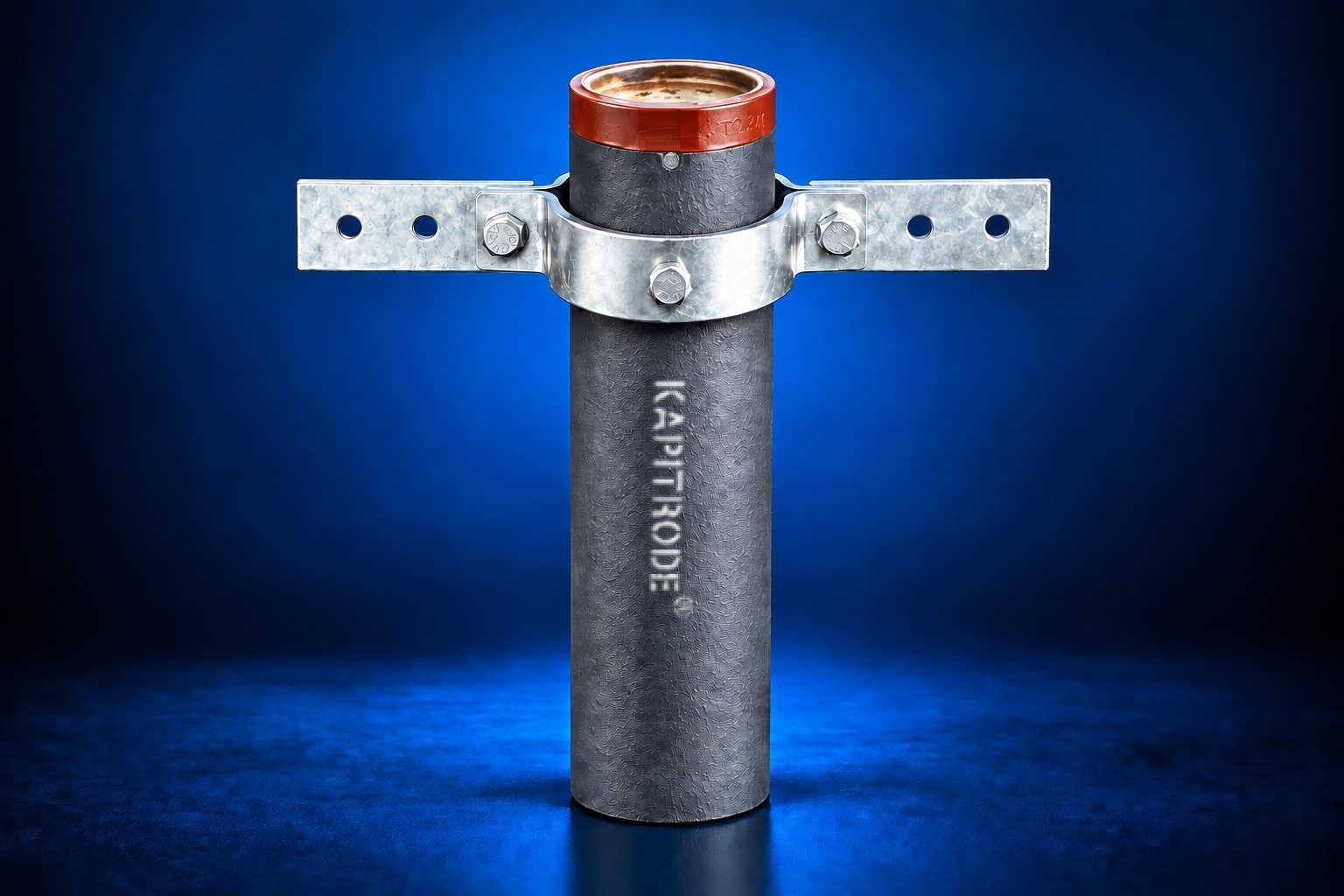

KAPITRODE with G.I. Clamp (HDG) and Funnel
KAPITRODE®
with G.I. Clamp (HDG) & Funnel

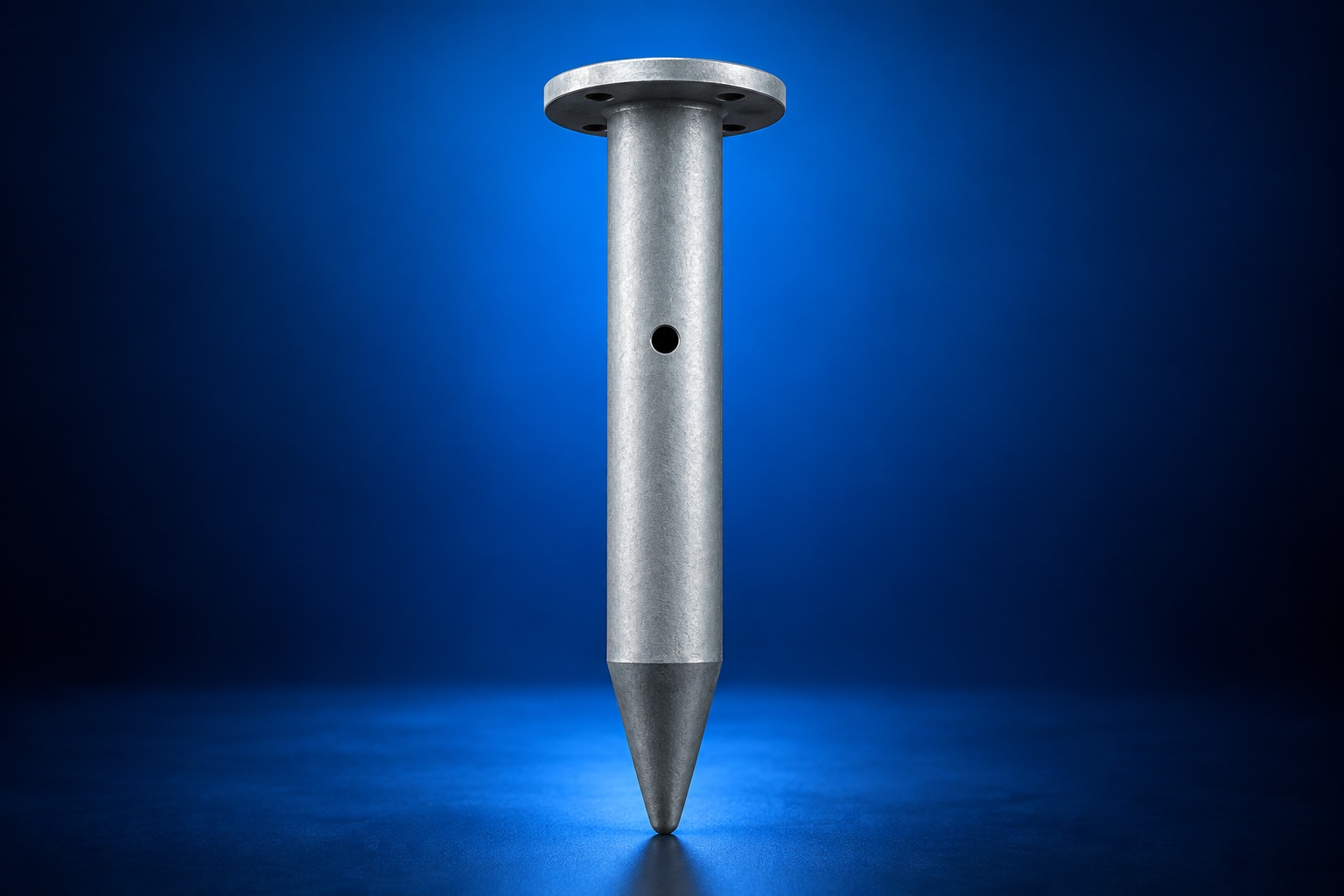

KAPITRODE with Cone
KAPITRODE®
with Cone
